Description
If you are processing pomegranates at an industrial scale, you may be facing these common challenges:
- Manual peeling and deseeding is labor-intensive and inefficient
- Traditional crushing damages arils, affecting juice quality and yield
- Peel residue mixes with seeds, causing bitterness and filtration problems
Our Solution: Non-Destructive Pomegranate Aril Separation
Our pomegranate peeling and deseeding machine adopts an advanced non-destructive aril separation technology, specifically engineered for pomegranates. The machine automatically separates pomegranate arils from the peel without damaging the arils, preserving their integrity, color, and flavor.
Compared with manual peeling, this machine reduces labor costs, improves aril yield, and ensures hygienic processing, making it an ideal solution for industrial-scale pomegranate processing. Fuxun Machinery offers different models, with processing capacities of 2-10 t/h, to meet different production scales. We also provide pomegranate seed separation & purification system to deliver clean, high-purity pomegranate arils. If you are planning juice factories, fresh arils plants, etc., Fuxun’s pomegranate peeling and deseeding machine will deliver stable output and consistent quality.
Raw Material Requirements:
This machine is suitable for processing whole pomegranates, cracked pomegranates, hard-seed or soft-seed pomegranates. Fresh fruit only.
Final Products
- Main Product: Pure pomegranate arils, which are suitable for fresh arils packaging, juice/jam/puree production, etc.
- By-product: Pomegranate peels, which can be dried for pharmaceutical use or used for extraction or value-added processing.

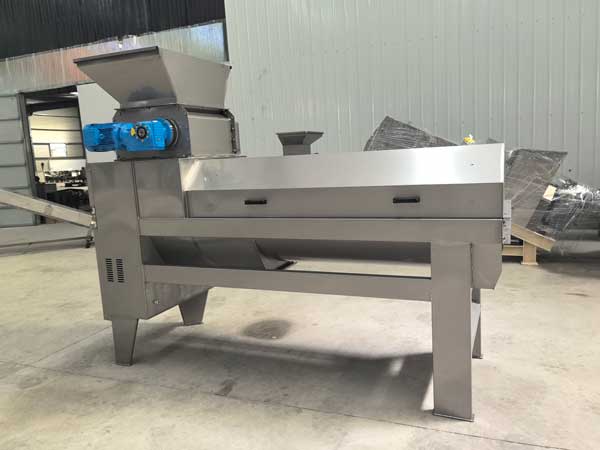

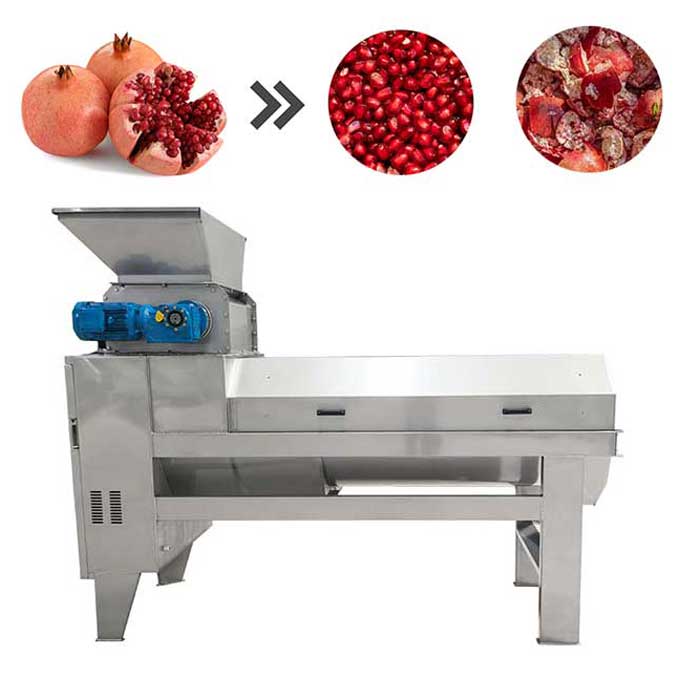

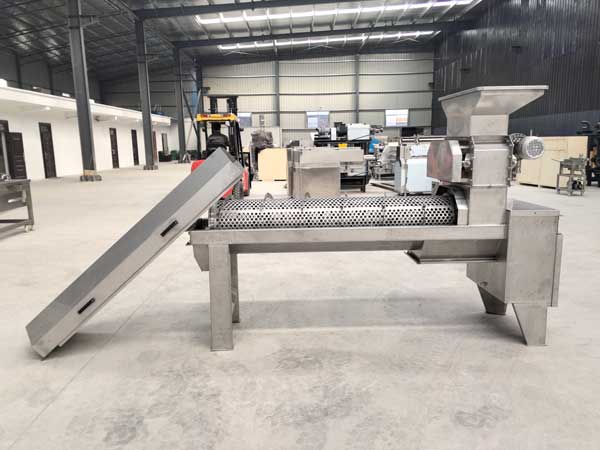

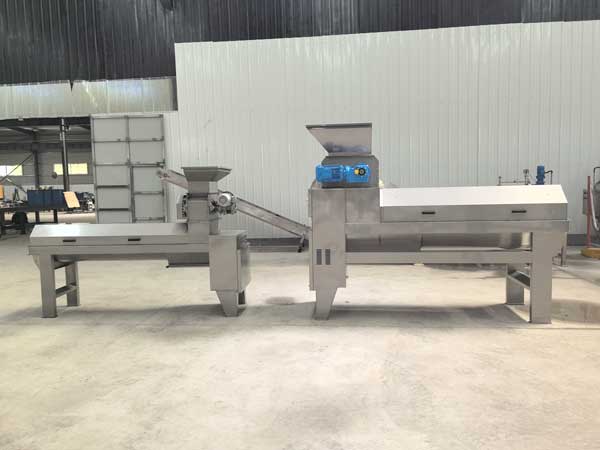

Pomegranate Peeling and Deseeding Machine
| Model | BP-2 | BP-5 | BP-10 |
|---|---|---|---|
| Capacity | 2 t/h | 5 t/h | 10 t/h |
| Drum Diameter | 300 mm | 500 mm | 790 mm |
| Peeling Power | 2.2 kW | 4 kW | 11 kW |
| Crushing Power | 1.5 kW | 2.2 kW | 3 kW |
| Dimensions(mm) | 2,570×680×1,770 | 2,780×900×1,890 | 3,650×1,230×2,200 |
| Weight | 410 kg | 678 kg | 835 kg |
What Results Can You Expect?
- Clean, intact arils discharge continuously
- High aril purity with minimal peel content (90%)
- Low seed damage, preserving juice taste and color
- Stable and continuous output for industrial lines
- High efficiency with low labor demand (a 2-ton machine replace 30 workers)
Applications
- Pomegranate juice production lines
- Pomegranate jam/puree/sauce processing
- Pomegranate wine and vinegar production
- Fresh pomegranate aril processing
- Pharmaceutical or extraction projects using pomegranate peel
Key Features of Pomegranate Deseeder Machine
1. High Aril Integrity
This machine is specifically designed for pomegranates and adopts a non-destructive separation technology, which gently opens each pomegranate and separates the arils without breaking them.
2. Food-Grade Stainless Steel Construction
The entire machine manufactured from food-grade stainless steel, which is hygienic, durable & easy to clean.
3. Easy Integration into Pomegranate Processing Lines

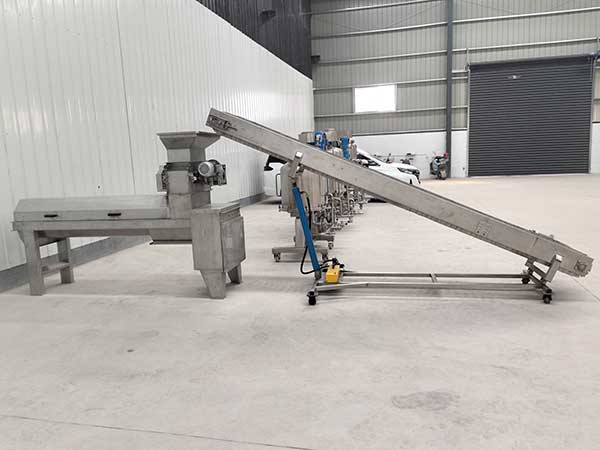

Our pomegranate peeling machine can be used as a standalone unit or integrated with other equipment, for example, washing machine or juice extractor.
4. Adjustable Crushing System
The crushing rollers are designed with an adjustable gap (22-30 mm) to suit different pomegranate size and peel thickness.
Main Structure & Working Principle
1. Feeding Hopper
- Accepts manual feeding or elevator feeding
- Designed for smooth and continuous input
2. Crushing Unit
- Upper-level primary crushing
- Efficient fruit splitting with minimal seed damage
3. Separation Unit
- Spiral separation shaft

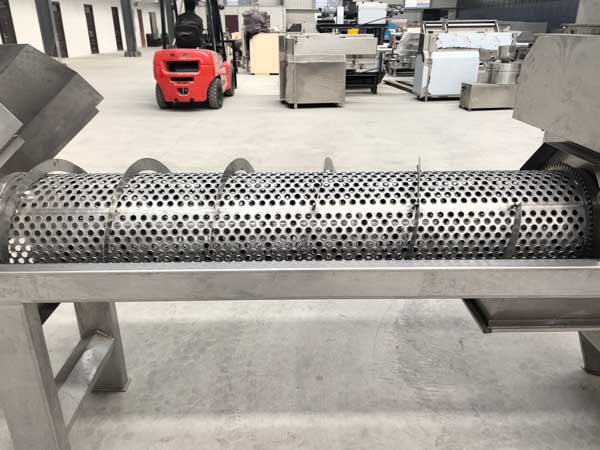

- Rotary perforated stainless steel screen
4. Machine Frame
- Full stainless steel structure
- Strong, stable, and vibration-resistant
5. Electrical Control Cabinet
Includes control box, electrical components, and frequency inverter
1. Feeding: Whole pomegranates are fed into the machine through the feeding hopper.
2. Primary Crushing (Upper Crushing Unit): The pomegranates enter the upper crushing section, where:
- Two stainless steel crushing rollers rotate in opposite directions
- Special blades on the rollers cut and split the fruit
Whole pomegranates are gently crushed into small pieces, achieving initial peel–seed separation while minimizing seed damage
3. Separation (Aril & Peel Separation Unit): The crushed material falls into the separation unit, consisting of a spiral separation shaft, a rotary perforated screen, variable frequency speed control. Under the combined rotation of the separation shaft and rotary screen, pomegranate arils and part of the juice pass through the screen holes; Arils exit through the discharge outlet and flow to the next process.
4. Discharge: Pomegranate peels are discharged from the rear end of the machine. While clean pomegranate arils with high integrity and low peel content.

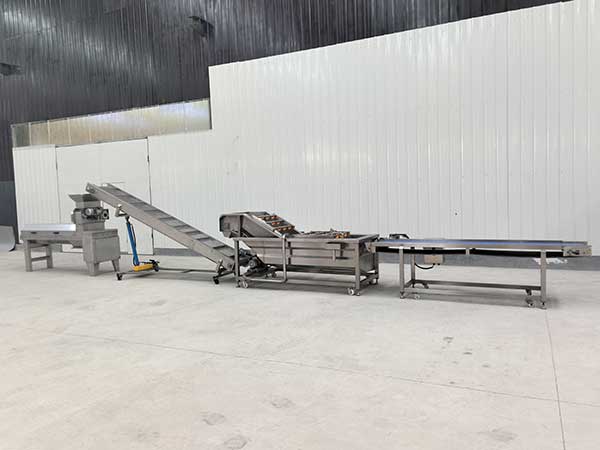

Process Flow of Pomegranate Arils Separation Line
Fresh pomegranates are processed through a continuous, non-destructive separation and multi-stage purification system:
Washing → Arils Separation → Conveying → Primary Purification → Secondary Purification → Tertiary Purification → Dewatering → Manual Inspection → Clean Pomegranate Arils Output
Taking our 1 t/h pomegranate deseeding line for example, here is the equipment used.
| No. | Equipment Name | Main Function | Capacity |
|---|---|---|---|
| 1 | Pomegranate Washing Machine | Bubble washing and ozone disinfection to remove surface dirt and microorganisms | 1 t/h |
| 2 | Pomegranate Peeling and Deseeding Machine | Gently separates arils from peel and membrane without damaging seeds | 1 t/h |
| 3 | Arils Elevator | Smooth, non-damaging lifting and conveying between processes | 0.5 t/h |
| 4 | Vibrating Separator | Removes fine peel fragments and small impurities (Primary purification) | 0.5 t/h |
| 5 | Flotation System | Removes light impurities such as membrane and foam (Secondary purification) | 0.5 t/h |
| 6 | Vibrating Separator | Final purification to improve arils cleanliness | 0.5 t/h |
| 7 | Vibration Dewatering Machine | Removes surface water from arils before packaging or further processing | 1 t/h |
| 8 | Manual Sorting Conveyor | Final visual inspection to ensure product quality | 0.5 t/h |
Get a Quote for Pomegranate Processing Solutions
Fuxun Machinery offers not only pomegranate peeling machines, but also complete pomegranate processing line, from washing, deseeding, juicing to packaging. Welcome contact us for technical detail, capacity recommendations, pricing, and more. Our team will help you choose the most suitable solution for your pomegranate processing project.
