Description
Our passion fruit juice machine is a specialized piece of equipment designed to extract juice from fresh passion fruits at a commercial or factory scale. The processing capacity ranges from 0.8 to 1 ton per hour. It is engineered for automatic separation of juice, peel, and seeds, and high-volume production — ideal for juice factories, beverage producers, and fruit processing plants. Moreover, by changing the internal structure, the machine can also be used for de-seeding tomatoes, watermelons, and chili peppers, making it a versatile solution for different fruit and vegetable processing needs.

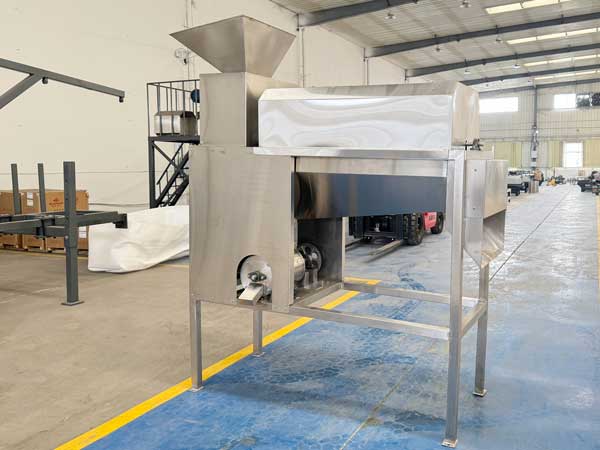

Passion Fruit Juice Machine
We offer one model with a processing capacity of 0.8 to 1 ton of passion fruit per hour, ideal for commercial juice production lines. By modifying its internal structure, this machine can be used to extract seeds from tomatoes, watermelons, and peppers. The processing capacity can reach up to 1.2 t/h.
| Model | BXG-1 |
| Production Capacity | 0.8-1.0 t/h |
| Power | 2.2 kW |
| Dimensions | 1,900*850*2,260 mm |
| Weight | 650 kg |
Features of Passion Fruit Juicer
1. Automatic Separation of Pulp (Juice), Peel, and Seeds
Our passion fruit juice machine automatically separates pulp, peel, and seeds in one continuous operation, without manual sieving or secondary filtration.
- The primary separation drum removes the fruit peel and large fibrous materials.
- The secondary seed separation drum then isolates the seeds from the juice and pulp.
- The result: clear, seed-free passion fruit juice with minimal solids.
2. High Juice Yield and Extraction Efficiency
The integrated crushing and separation system maximizes juice recovery.
- The precision-designed crusher breaks the fruit just enough to release juice without damaging seeds.
- The separation process squeezes more juice from pulp compared with conventional presses.
3. Food-Grade Stainless Steel Construction
All parts in contact with the product are made from food-grade stainless steel, with food-grade silicone used for scraper blades and seals.
- Corrosion-resistant and durable in acidic juice environments.
- Non-reactive material preserves the natural color, aroma, and flavor of passion fruit.
4. Wide Applications
By adjusting internal fittings, this machine can be repurposed for tomato, watermelon and chili de-seeding.
Structure & Working Principle
The machine mainly consists of a feed hopper, crusher, separator, seed separator, transmission system, and frame.

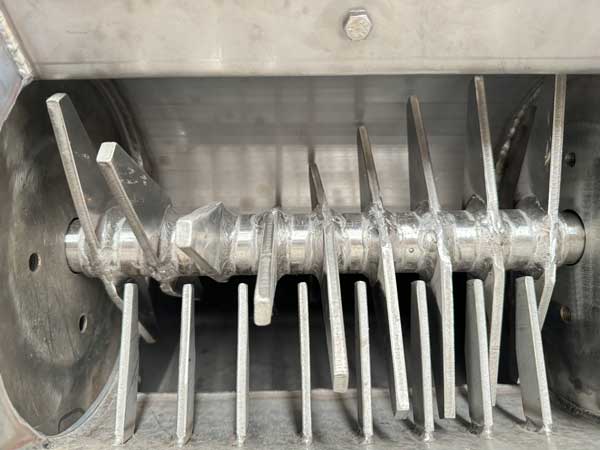

1. Feeding and crushing: Fruit is fed through the hopper into the crusher. The crusher ruptures the fruit, separating peel fragments, pulp, juice and seeds into a mix.
2. Primary separation: The crushed mixture is conveyed into the separation drum where tumbling and centrifugal effects separate lighter peel and skin from heavier pulp/juice and seeds. Peel is discharged via the waste/chute.
3. Seed and pulp separation (de-seeding cylinder): The juice/pulp/seed mixture flows into the perforated seed drum. High-speed rotating silicone scrapers continuously press the pulp against the perforated surface, forcing juice and fine pulp to pass through the holes into the collection trough while seeds are mechanically moved along and expelled through the seed outlet.
4. Juice collection and discharge: Juice collected in the trough flows out the juice outlet to the next processing stage. Seeds and coarse residues are discharged separately, ready for packaging, animal feed, or disposal.
QFJ Passion Fruit Juicer Machine
The QFJ passion fruit cutting & juicing machine combines a cutting machine and a juicing machine to perform continuous cutting, peeling, and pulp-seed collection with minimal waste.
- Capacity: 1.5–2.5 tons/hour
- Power: Cutting machine: 0.75 kW; Separator: 1.5 kW
- Dimensions: Cutting Machine: 3140 × 990 × 3120 mm; Separator: 1830 × 1240 × 2550 mm
- Material: All food-contact parts are made of stainless steel and silicone.
How to Choose a Passion Fruit Juice Machine?
1. Decide Your Desired Product — Clear Juice (seed-free) or Pulp (with seeds)
Identify your end product first. For seed-free juice, machines like our “BXG series” are designed to remove seeds and peel efficiently. For pulp with seed, our pulping machines and dual-roller juicer machines can be used by changing the internal structure.
2. Consider Your Production Capacity — How Many Fruits per Hour?
Calculate your target daily production → estimate hourly throughput (consider running hours, cleaning, downtime) → choose a machine with slightly higher capacity for stable operation. We offer custom solutions to meet different production needs. Welcome to talk with our expert team.
3. Decide on Washing, Lifting, and Automation Needs
We supply passion fruit juice machines individually, and we can also design a line that combines washing, lifting, and juice extraction to maximize efficiency and reduce manual handling. Just inform us of your requirements and budgets, and we will provide you with a satisfactory solution.
At Fuxun Machinery, we take pride in serving hundreds of clients worldwide every year. With our extensive experience in food processing equipment and professional team, we are committed to providing solutions that meet your production needs efficiently and reliably.
As a factory-direct supplier, we guarantee competitive prices, high-quality machines, and readily available spare parts to ensure smooth operation and long-term support for your business. Contact us today to discuss your project — let Fuxun Machinery help you turn fresh passion fruit into high-quality juice with maximum efficiency.
