Description

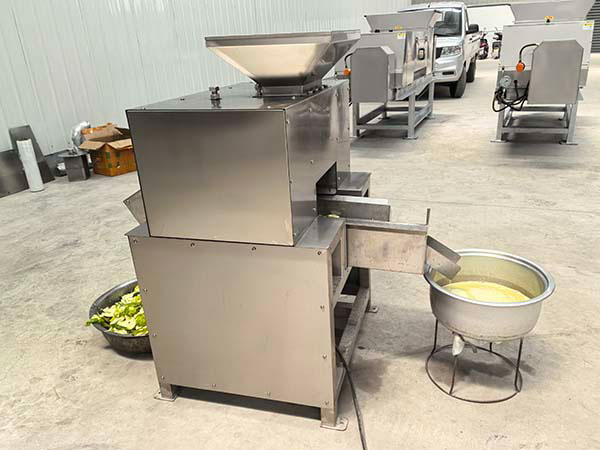

Our industrial orange juicer machines are designed for commercial and industrial citrus fruit processing plants. Available in four models capable of handling 0.5 to 4 tons of citrus fruits per hour—including oranges, lemons, limes, and grapefruits. Built from food-grade stainless steel, each juicer ensures durability and hygiene. This juicer machine can work with fruit washing systems and conveyor lines, creating an automated juice production line. Welcome to contact Fuxun Machinery for customized solutions.
Specifications of Orange Juicer Machine
| Model | DGJ-300 | DGJ-400 | DGJ-600 | DGJ-800 |
| Power | 1.5 kW | 2.2 kW | 3 kW | 4 kW |
| Capacity | 0.5-1 t/h | 1-2 t/h | 2-3 t/h | 3-4 t/h |
| Dimension (mm) | 1290×880×1350 | 1290×980×1350 | 1290×1080×1350 | 1290×1180×1350 |
| Weight | 350kg | 420kg | 560kg | 700kg |
Features of Industrial Citrus Juicer
- Whole-Fruit Processing Capability: Our dual-roller juice machine is engineered to process whole citrus fruits with diameters from 10–110 mm —including kumquats, mandarins, oranges, lemons — without grading and peeling.
- Versatile Application: This machine processes a wide range of citrus fruits, such as kumquats, mandarins, oranges, and lemons. Additionally, it is also suitable for passion fruits when configured with specific rollers.
- Multi-Roller Extraction System: The fruit first passes between two counter-rotating knife rollers with the help of a feed roller. Then the pre-cut fruit is pressed by the three pressure rollers to fully extract juice. This design ensures high juice yield and clean separation.
- Food-Grade Stainless Steel Construction: The entire machine is constructed from food-grade stainless steel except for drive components. Crucially, the cutting blades are made from 440C stainless steel. The material offers superior hygiene and durability.
Working Principle of Dual Roller Juicer
The primary components of this machine include three stainless steel counter-rollers, two cutting rollers, one feeding roller, an inlet hopper, a juice outlet, a machine frame, and a drive mechanism.
This industrial juicer operates through a simple yet efficient 4-stage mechanical process:
1. Feeding: Whole, unpeeled fruits are loaded into the feed hopper.

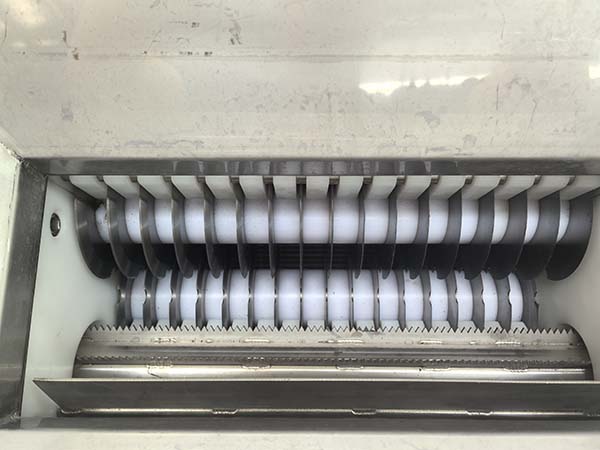

2. Cutting: Fruits pass between two rotating knife rollers. These blades make precise cuts in the peel to release juice and create escape paths for liquid.

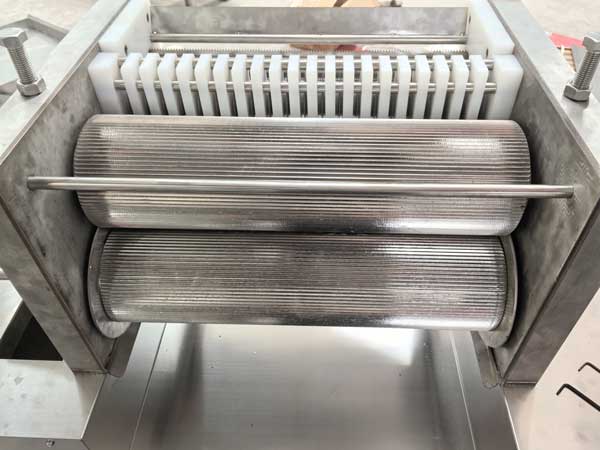

3. Pressing: The cut fruits move through three press rollers. These rollers apply increasing pressure to squeeze out juice and pulp while keeping the peel largely intact.
4. Discharging: Flat, dry peel is ejected from one outlet, while fresh juice and pulp flow out from juice outlet.
FAQs of Industrial Orange Juicer
Mainly citrus fruits such as oranges, lemons, grapefruits, kumquats, limes, and more. With different rollers, it is also suitable for passion fruits.
No, you do not need to peel or grade the fruits before juicing. This industrial citrus juicer is specifically designed to handle whole, unpeeled fruits directly.
Yes, the juice may have a slight bitterness. When using a roller-type citrus juicer, this is completely normal. The “whole-fruit” processing allows some natural oils and flavors from the peel into the juice, creating a richer, more authentic citrus taste. If you prefer a smoother, milder flavor, you can simply filter or blend the juice to get a clean, smooth, and well-balanced taste.
0.5-4 tons per hour. We offer four models of industrial citrus juicers: DGJ-300, DGJ-400, DGJ-600, and DGJ-800, with capacities ranging from 0.5 to 4 tons per hour.
All parts in contact with fruits and juice are made of SS304 stainless steel. The blades are made from 440C stainless steel for high strength and long service life. It can be customized with SS316 according to your needs.
Yes. The industrial orange/lemon juicer can be integrated with fruit washing machines, conveyors, peeling machine, Pasteurizer, and other equipment to create a complete juice production line.
Standard models operate on a three-phase 380V, 50Hz power supply, while custom voltage options are available.
