Description

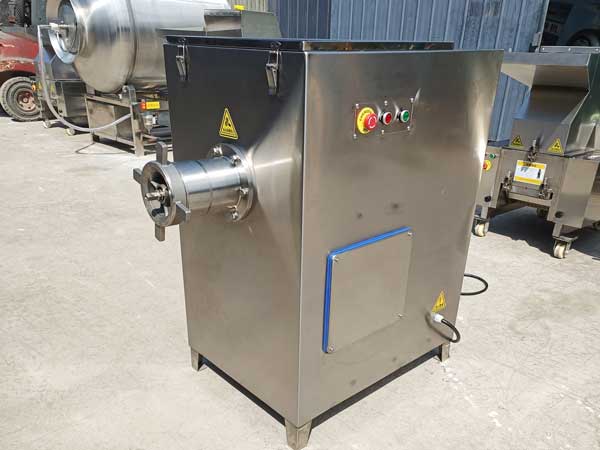

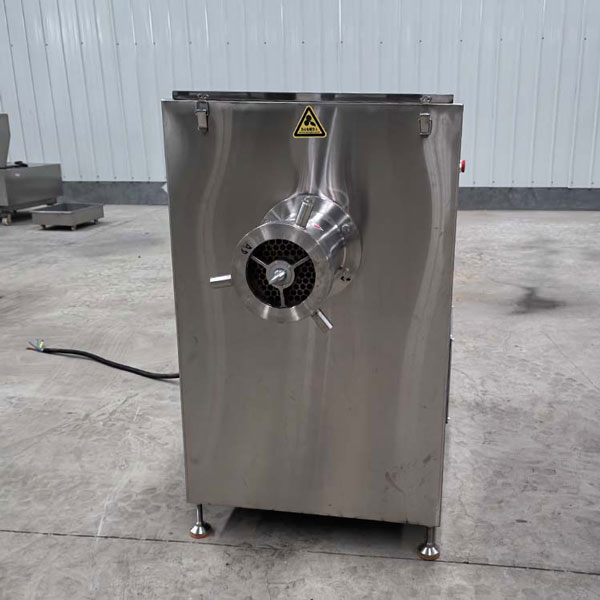

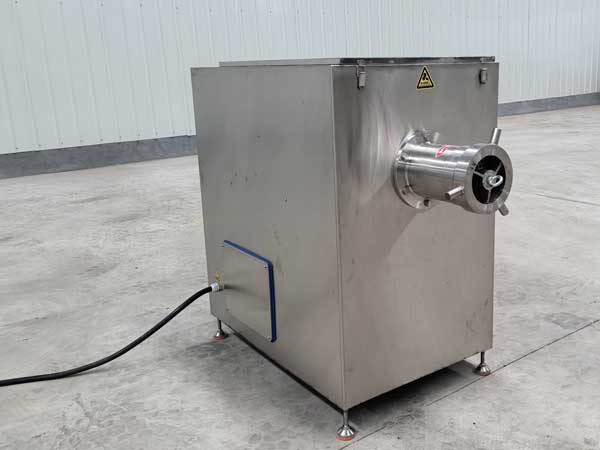

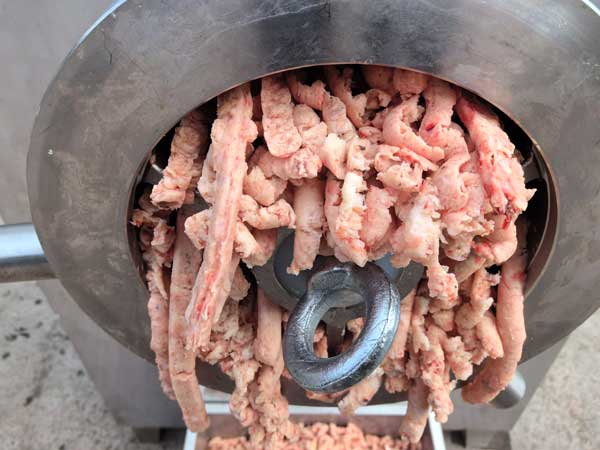

Industrial meat grinder is a large-scale, high-efficiency machine designed to grind meat into uniform particles or mince.
Specifications of Sesame Paste Machine
| Model | JMS-50 | JMS-80 | JMS-110 | JMS-130 | JMS-160 | JMS-180 | JMS-210 | JMS-240 | JMS-300 |
|---|---|---|---|---|---|---|---|---|---|
| Fineness (mesh) | 50-100 | 80-150 | 80-150 | 80-200 | 80-200 | 80-200 | 80-200 | 80-200 | 80-200 |
| Capacity (kg/h) | 10-15 | 60-80 | 100-200 | 300-500 | 500-600 | 700-800 | 1000-1200 | 1200-1500 | 3000-4000 |
| Power (kW) | 1.5 (220V) | 4 | 7.5 | 11 | 15 | 18.5 | 30 | 45 | 75 |
| Weight (kg) | 50 | 150 | 175 | 285 | 300 | 375 | 700 | 920 | 1300 |
| Dimensions (mm) | 530*260*580 | 600*410*930 | 700*430*1000 | 990*440*1000 | 1000*460*1050 | 1000*490*1100 | 1260*600*1230 | 1330*630*1280 | 1440*680*1420 |
| Hopper (L) | 3 | 8 | 8 | 14 | 14 | 14 | 24 | 24 | 32 |
| Feed Inlet Diameter (mm) | 40 | 50 | 50 | 90 | 90 | 90 | 120 | 120 | 270 |
Multi-purpose Tahini Paste Machine
Tahini making machine is not just for sesame paste — it’s a multi-purpose grinder that efficiently produces high-quality nut butter, sauces, and pastes for various uses.
- Process peanuts, almonds, cashews, sunflower seeds, and other nuts into nut butter or spreads;
- Suitable for chili paste, cocoa paste, garlic sauce, mayonnaise, and other condiments.
- Creates smooth and consistent jams or purees from fruits and vegetables, like tomato sauce, chili sauce, strawberry pulp, etc.
- Grinding the base ingredients (soaked beans, nuts, or grains) into a smooth slurry, such as soy milk, almond milk, peanut milk, etc.
- Grinding the meat or fish and fat into a fine paste for products like sausages, hot dogs, pâtés, and luncheon meats.
- Chemical & Pharmaceutical Industries: for example, for making medicinal and cosmetic creams.
Features & Advantages of Sesame Grinding Machine
1. Fine & Consistent Grinding

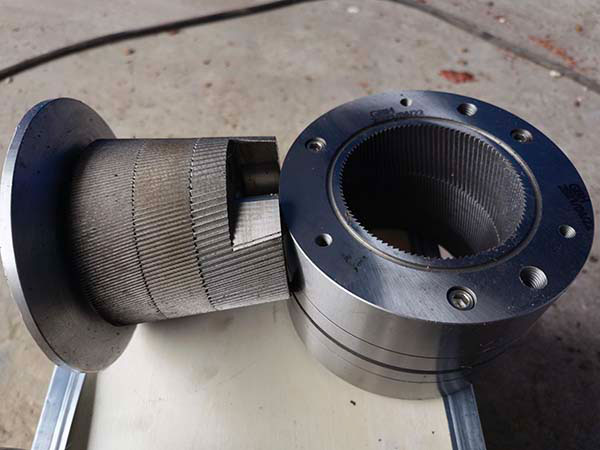

- Adopts high-speed rotor–stator structure, ensuring ultra-fine grinding of sesame seeds into smooth, delicate paste.
- Multiple stator and rotor options allow flexible control of paste texture and fineness.
- Adjustable grinding gap to meet different production requirements.
2. Food-Grade Stainless-Steel
- Made of food-grade stainless steel for safety, hygiene, and long service life.
- Easy to clean and maintain, preventing cross-contamination in food processing.
3. Wide Processing Capacity
- Available in multiple models with capacities from 10 to 3000 kg/h, suitable for small workshops or large industrial production.
- Can be used for sesame paste, peanut butter, chili sauce, cocoa paste, meat paste, and other nuts or spreads.
4. Flexible Integration
- Can be used as a stand-alone machine or as part of a complete tahini production line.
- The design of the sesame grinder can be vertical or horizontal to suit your plant layout.
Tahini Production Line
The entire tahini making process can be summarized in the following steps:
Sesame Seed Cleaning → Drying → Roasting → Cooling → Grinding → Mixing → De-aeration → Storage

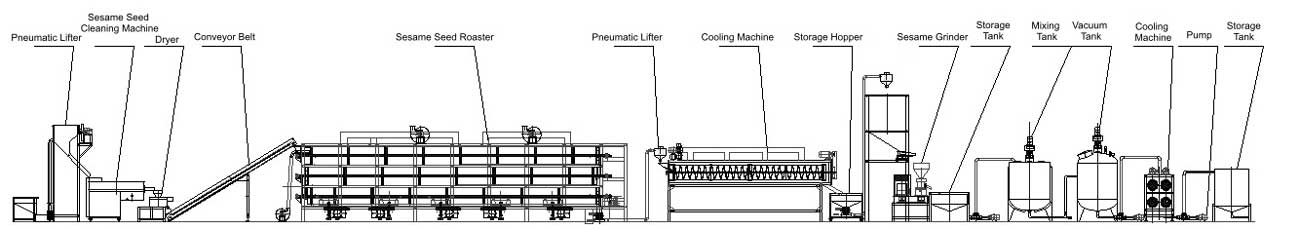

Below is a table of equipment used in our 1 t/h tahini production line.
| No. | Equipment Name | Power (KW) | Size/Dimensions | Qty | Function |
|---|---|---|---|---|---|
| 1 | Pneumatic Lifter | 1.5 | 2000x600x3150mm | 1 | Lifts raw sesame seeds into cleaning machine |
| 2 | Sesame Cleaning Machine | 0.75 | 2300x600x1350mm | 1 | Washes and removes impurities from seeds |
| 3 | Centrifugal Dryer | 1.5 | 1000x800x650mm | 1 | Removes surface water from washed seeds |
| 4 | Conveyor Belt | 0.75 | 4000x600x2700mm | 1 | Transports dried seeds to roaster |
| 5 | Roasting Machine | 371 | 11000x1900x2600mm | 1 | Roasts seeds to increase flavor and aroma |
| 6 | Pneumatic Elevator | 1.5 | 2600x600x2500mm | 1 | Lifts roasted seeds to cooler |
| 7 | Cooling Machine | 6.25 | 6000x800x2600mm | 1 | Cools roasted seeds quickly |
| 8 | Pneumatic Elevator | 1.5 | 1700x1100x4800mm | 1 | Lifts cooled seeds to storage hopper |
| 9 | Storage Feeder Hopper | 0.07 | 2560x1340x4140mm | 1 | Holds cooled seeds and feeds grinders |

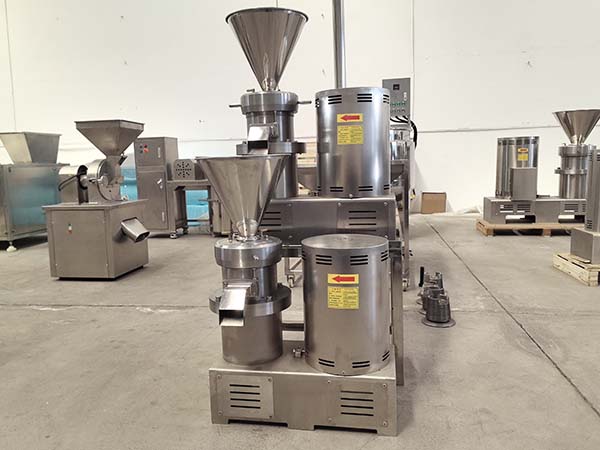

| 10 | Tahini Grinders | 30×2 | 1200×550×1600mm | 2 | Grinds roasted seeds into smooth paste |
| 11 | Storage Tank | – | 1000L | 1 | Holds ground tahini before mixing |
| 12 | Paste Pump | 2.2 | 1200×300×350mm | 1 | Pumps tahini between tanks and machines |
| 13 | Mixing Tank | 5.5 | 1500L | 1 | Blends in ingredients like salt, sugar |
| 14 | Vacuum Tank (De-aerator) | 8.5 | 1500L | 1 | Removes air bubbles from tahini |
| 15 | Paste Pump | 2.2 | 1200×300×350mm | 1 | Pumps tahini to next stage |
| 16 | Cooling Machine (Paste) | 3 | 2600×800×1850mm | 1 | Cools finished tahini before storage |
| 17 | Paste Pump | 2.2 | 1200×300×350mm | 1 | Pumps cooled tahini to storage tank |
| 18 | Storage Tank | – | 1500L | 1 | Holds finished tahini ready for packaging |
| 19 | Control Cabinet | – | – | 2 | Controls the entire production line |
Tahini Production Process
As mentioned above, Fuxun Machinery offers a complete tahini production line to help you achieve consistent sesame paste at scale. Here’s a step-by-step look at the process:

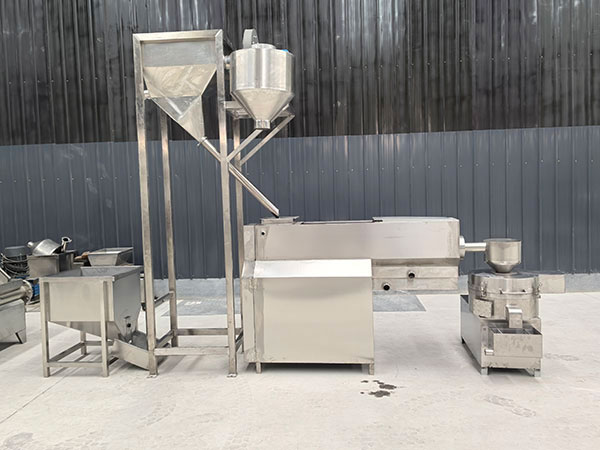

1. Cleaning — Sesame Seed Cleaning Machine
Raw sesame seeds are first cleaned to remove dust, stones, and impurities to improve the quality of the final paste. A centrifugal dryer is then used to remove excess water, preparing the seeds for roasting.
2. Roasting — Nut Roaster
Then roaste the cleaned sesame seeds with a nut roaster to enhance the aroma, flavor, and color of the seeds, making the paste more fragrant and appealing. Fuxun Machinery offers both drum roasters and belt-type roasters to meet different production needs.
3. Cooling — Cooling Belt
After roasting, the seeds are cooled to stabilize their quality and prepare them for grinding. Proper cooling helps retain flavor and prevents overheating during the next stage.

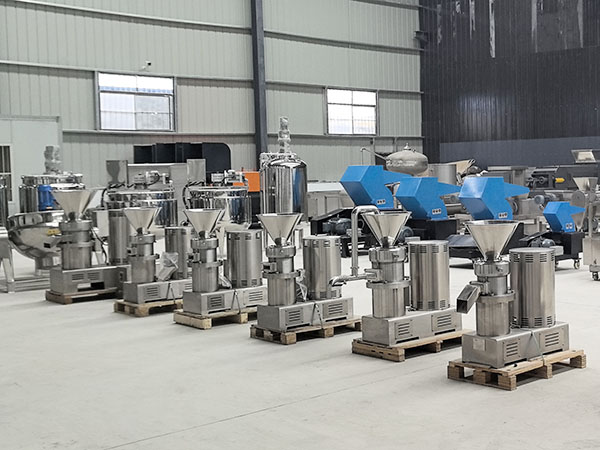

4. Grinding — Colloid Grinder
Using a colloid grinder, roasted sesame seeds are ground into a fine, smooth paste. You can grind twice or more to get a finer paste.
5. Mixing (Optional) — Mixing Tank
For large-scale production, mixing and homogenizing equipment can be added to ensure uniform texture and stable product quality.
6. Storage & Filling
The finished tahini is stored in tanks for packaging. Fuxun Machinery can also customize your tahini production line based on your needs. Welcome to talk with us!
Conclusion
With years of experience and a full range of equipment, Fuxun Machinery is your trusted partner for sesame paste and tahini production. Whether you need a single colloid grinder or a complete tahini production line, we provide reliable machines, customized solutions, and factory pricing to help your business grow. Tell us your requirements today, and let us design the right tahini making solution for you.
