Description

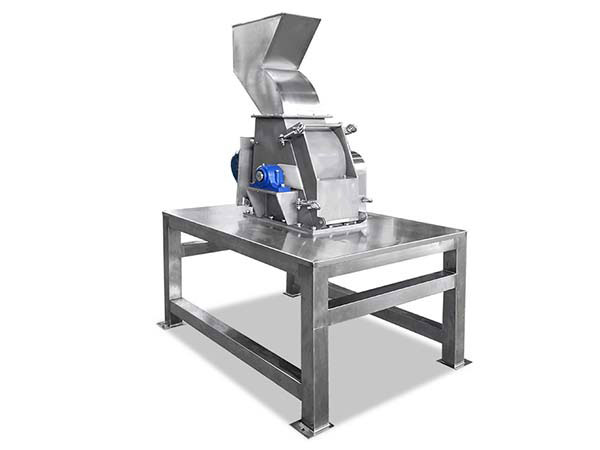

Industrial fruit and vegetable crusher machine is used to crush fruits and vegetables into small, uniform particles for further processing, such as juicing, grinding, or pressing. It helps increase juice yield, improve efficiency, and ensure a consistent texture in the final product. Our crusher machine is widely used in:
- Efficient juice extraction or jam production in food processing;
- Volume reduction and improved dewatering efficiency in organic waste management;
- Preparation for fermentation or composting, and more.
Fuxun Machinery has three types of crushers to handle different raw materials and processing goals:
- PS Series Crusher – for berries and softened pome fruits;
- CPJ Series Hammer Crusher – for a wide variety of fruits, vegetables, and organic waste;
- CPS Series Cage Crusher – for general-purpose fruit and vegetable crushing (excluding stone fruits).

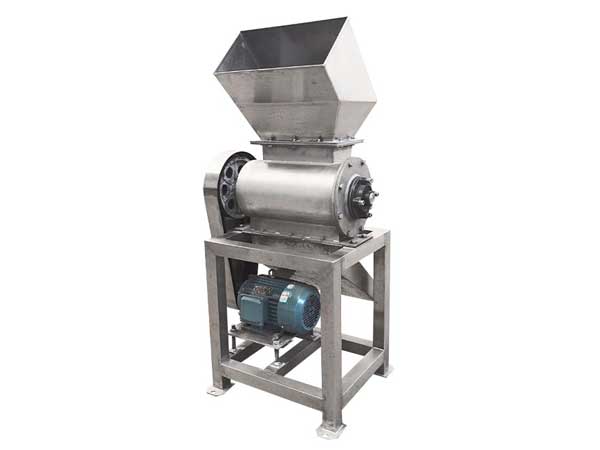

PS Series Crusher
| Model | Power | Output | Dimensions | Weight |
|---|---|---|---|---|
| PS-1 | 2.2 kW | 1 t/h | 1,290*880*1,350 mm | 180 kg |
| PS-3 | 7.5 kW | 3 t/h | 1,400*600*1,400 mm | 450 kg |
| PS-5 | 15 kW | 5 t/h | 1,700*720*1,620 mm | 650 kg |
| PS-10 | 18.5 kW | 10 t/h | 1,900*900*1,900 mm | 850 kg |
| PS-20 | 37 kW | 20 t/h | 2,200*980*2,000 mm | 1,400 kg |
CPJ Series Hammer Crusher
| Model | Capacity | Power | Dimensions |
|---|---|---|---|
| CPJ-5 | 5 t/h | 5.5 kW | 1,200×800×1,500 mm |
| CPJ-10 | 10 t/h | 11 kW | 1,400×1,000×1,900 mm |
| CPJ-20 | 20 t/h | 22 kW | 1,500×1,200×2,200 mm |

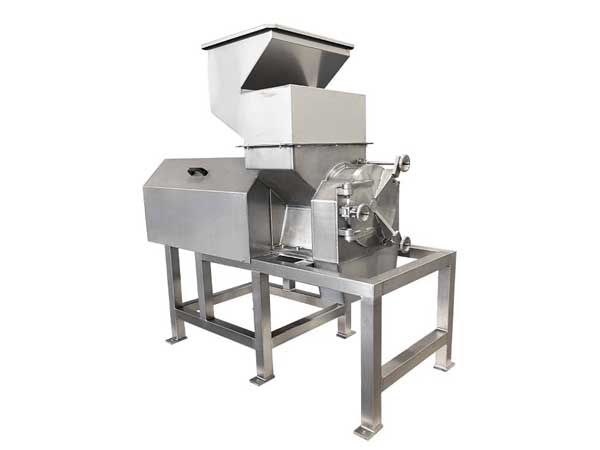

CPS Series Cage Crusher
| Model | Capacity | Power | Dimensions |
|---|---|---|---|
| CPS-2 | 2 t/h | 3.0 kW | 950×400×1,650 mm |
| CPS-5 | 5 t/h | 5.5 kW | 1,150×450×1,850 mm |
| CPS-10 | 10 t/h | 11 kW | 3,140×500×2,000 mm |
| CPS-20 | 20 t/h | 22 kW | 1,800×700×2,500 mm |
Fruit & Vegetable Waste Dewatering Solution

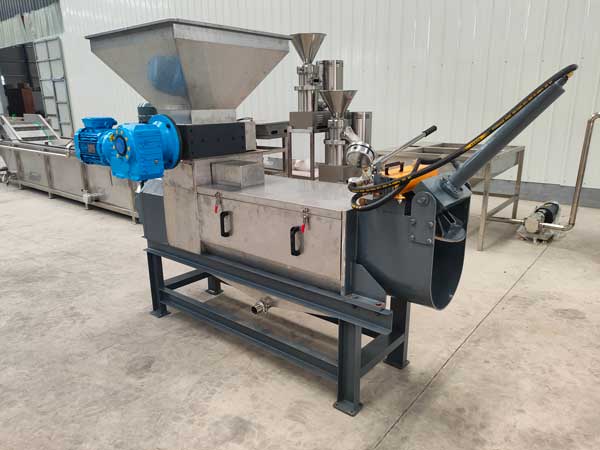

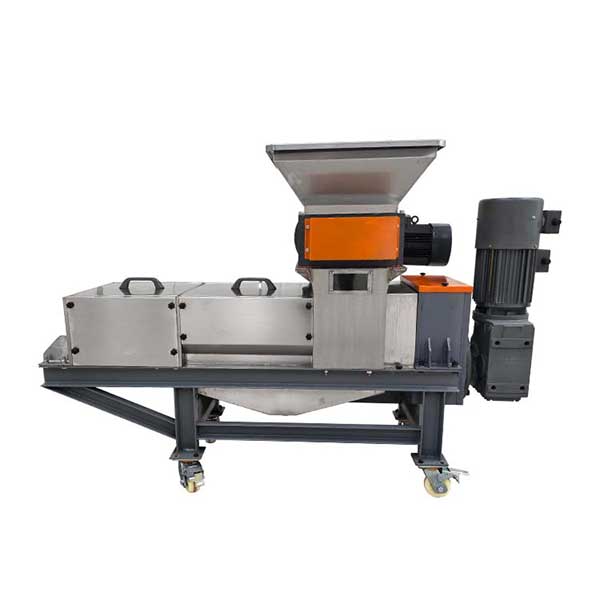

1. Integrated Shredding and Dewatering System
Our dewatering system for fruit and vegetable waste is integrated with a shredder machine. The built-in shredder breaks down large vegetable leaves, stems, or fruit chunks, while the screw press then squeezes out the liquid. This streamlined operation saves space and increases processing capacity. You can also use a shredder machine separately to crush the materials into small pieces and then feed them into the screw press machine.

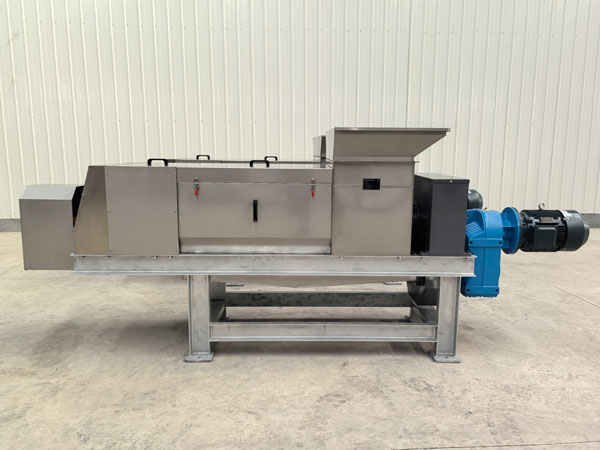

2. Advanced Screw Press Technology
We offer different screw designs (single screw, double screw, and tapered screw) for different materials. The screw press system relies on mechanical pressure, requiring no heat or chemical additives — resulting in low operating costs and minimal energy consumption.
3. Multiple Feeding Options
Depending on your site layout and handling method, we offer two feeding options:

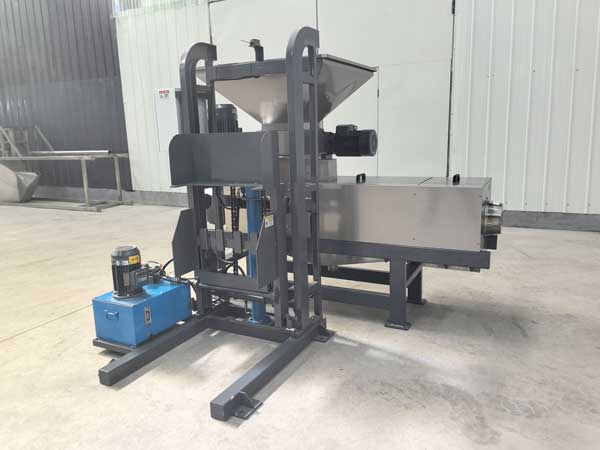

- Trash can lifter – ideal for smaller-scale or batch operations.

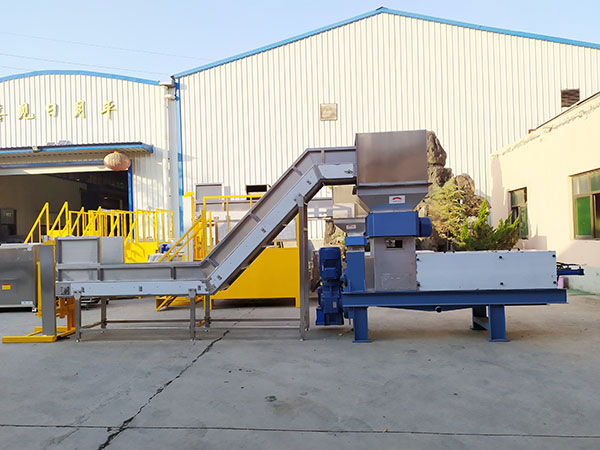

- Conveyor belt feeding system – suited for continuous, high-volume waste handling.
Working Principle
The working process of our fruit and vegetable waste dewatering machine can be divided into four main stages:
1. Feeding & Shredding
Feed the waste material (vegetable leaves, stems, peels, fruit pulp, etc.) to the shredding chamber via the feeding system. The rotating blades cut and tear the material into smaller pieces, ensuring smooth and continuous feeding into the screw press.

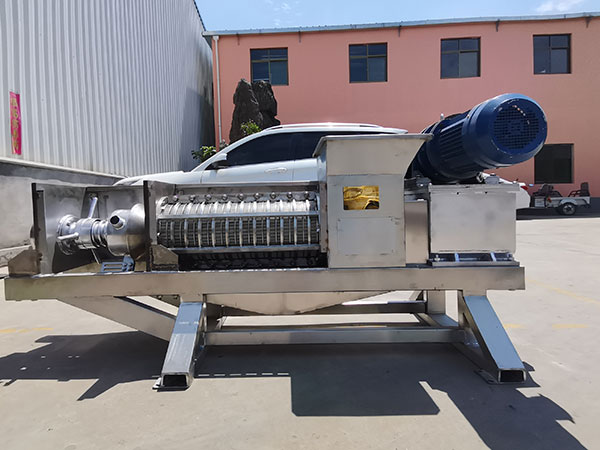

2. Pressing
Inside the press chamber, the screw shaft conveys the shredded material forward while gradually reducing the space between the screw. This creates increasing pressure, squeezing the water content out through the screen.
3. Discharge
The liquid passes through the screen mesh and is discharged from the liquid outlet. This liquid can later be used for biogas generation, composting, or wastewater treatment. While the dewatered solids are discharged at the outlet at the end. The solids are suitable for reuse as fertilizer or feedstock.
Why Choose Fuxun Machinery?
✅ Customized Solution: We will analyze your materials to design a dewatering system — adjust critical parameters such as screw pitch, compression ratio, screen mesh size, and motor speed to better fit your specific needs.
✅ Proven Dewatering Efficiency: Our fruit and vegetable waste dewatering machine reduces liquid content to about 60%, cutting handling and transport costs significantly.
✅ Energy-Efficient Operation: The entire process relies on mechanical pressure, with no thermal drying — reducing energy consumption and operating costs.
✅ Comprehensive Support: From design to installation, commissioning, and after-sales service — Fusion Machinery provides complete waste management solutions tailored to your facility.
Contact Fuxun Machinery today to get a customized solution for your organic waste processing needs.
