Description
Chili powder grinding machine is one of Fuxun’s hot-selling products. This machine is widely used by spice processors to grind dry chili, pepper, turmeric, moringa, and mixed seasonings on the same equipment. Whether you want to grind one spice or multiple spices, our powder grinder machine will be an ideal solution.
This makes the powder grinder machine widely used by:
- Spice processing plants
- Seasoning manufacturers
- Food ingredient suppliers
- Export-oriented spice powder producers
Typical Spice Materials Processed
Our spice powder grinding machine is suitable for dry, low-oil, brittle spice materials, including but not limited to:
- Dried chilli peppers, chilli flakes;
- Black pepper, white pepper, and Sichuan peppercorns;
- Turmeric, dry ginger, dry garlic, and other hard spices;
- Other dried spices and seasonings, such as cumin, coriander seeds, cinnamon, moringa, etc.
The powder grinder machine is not suitable for:
- Fresh or wet chilli and spice;
- High-oil materials (such as oily nuts or seeds);
- Sticky or paste-like materials.

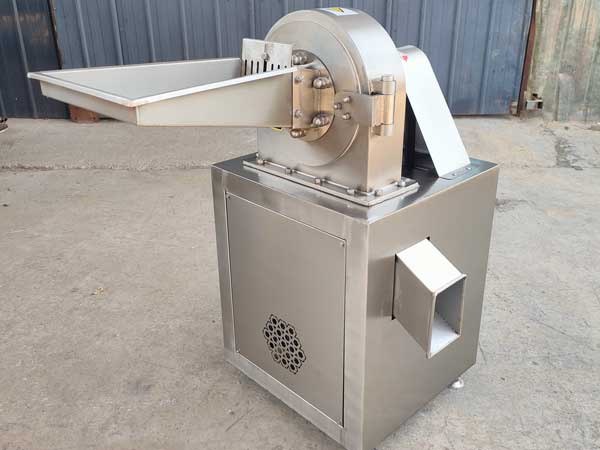

Chilli Powder Grinding Machine
| Model | FS-200 | FS-300 | FS-400 | FS-500 | FS-600 | FS-800 | FS-1000 |
| Capacity (kg/h) | 10-120 | 30-200 | 50-300 | 70-400 | 100-500 | 500-1,500 | 800-2,000 |
| Input Particle Size | ≤12mm | ≤12mm | ≤12mm | ≤12mm | ≤12mm | ≤12mm | ≤12mm |
| Fineness (Mesh) | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 |
| Power (kW) | 1.5-2.2 | 3-4 | 5.5-7.5 | 7.5-11 | 11-15 | 18.5-22 | 22-30 |
| Dimensions (mm) | 520×420×970 | 920×530×1,235 | 1,250×850×1,350 | 1,300×920×1,390 | 1,450×930×1,480 | 1,750×1,150×1,760 | 2,000×1,260×1,950 |
| Rotary Speed (rpm) | 7,000 | 5,700 | 4,500 | 3,900 | 3,200 | 2,800 | 1,800 |
| Rotor Diameter (mm) | 160 | 230 | 320 | 370 | 450 | 600 | 800 |
Raw Material Requirements Before Grinding
To achieve stable performance and high-quality powder, raw materials should meet the following conditions:
Material requirements:
- Must be fully dried
- Moisture content should be low
- Free from stones, metal, or hard impurities
Important notes:
- Fresh chili is not suitable for direct grinding
- Oily spices are not recommended
- For large turmeric roots, slicing before drying is advised
Common Challenges in Spice Powder Grinding
During spice grinding, processors often encounter the following issues:
- Uneven powder fineness between batches
- Excessive heat generation, affecting color and aroma
- Clogging when grinding fibrous spice skins or seeds
- Cross-contamination when changing from one spice to another
- Difficult cleaning, increasing downtime
Our Solution
- Disc-Type Grinding Structure: Material enters the grinding chamber and is crushed through multiple impact and shearing forces to ensure uniform powder fineness.

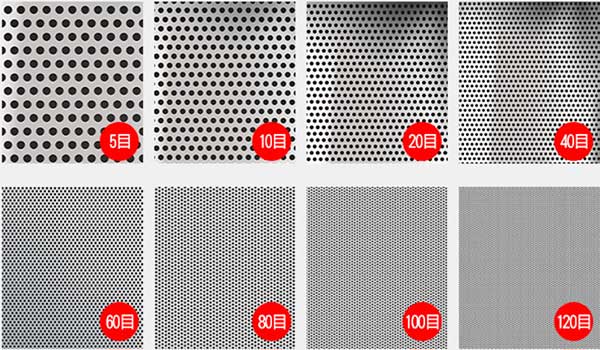

- Adjustable Powder Fineness: Fuxun’s chilli powder making machines allow fineness adjustment, typically within 50-150 mesh, by changing the sieve screen.
- Built-in Cooling System: The machine is equipped with a cooling fan and a water-cooling system. This system effectively controls grinding temperature during continuous operation, helping to preserve powder color, aroma, and quality.
- Food Grade Stainless Steel: The entire machine is constructed from food-grade 304 stainless steel, offering excellent corrosion resistance and hygiene. And the machine can be cleaned directly with water after use.
FAQs About Chili Powder Machine
Yes. One machine can process different dry spices like chili, turmeric, and pepper. It is also widely used to process grains, herbs, sugar, salt, beans, and similar products.
The powder fineness is adjustable from 50 to 150 mesh. By changing the screen, you can produce coarse powder or fine powder as you need.
Powder fineness is controlled by replacing the sieve screen.
Yes. This heavy-duty powder grinder is designed for industrial use and supports continuous operation.
Yes. This machine is made of food-grade stainless steel (304 SS), suitable for food, spice, and pharmaceutical applications. Carbon steel or other versions, such as 316SS, are also available.
Yes. We provide wear parts such as hammers and screens, technical support, and operation manuals. If you have any questions, please let us know.
Yes. Material test is available. You can send your raw material for test grinding, or provide material details and target mesh size. We will recommend the most suitable model and configuration based on test results.
No. Fresh chili contains too much moisture. It can be processed into chili sauce with our colloid grinder.
Conclusion
If you are looking for a reliable solution to produce chili powder, turmeric powder, or other dry spice powders, Fuxun’s powder grinder is built to meet practical production needs. With adjustable fineness, effective temperature control, and a food-grade stainless steel structure, it is suitable for both continuous operation and long-term use.
Contact Fuxun Machinery to discuss your raw materials, required output, and fineness requirements — our team can recommend the right model and configuration for your application.
