Description

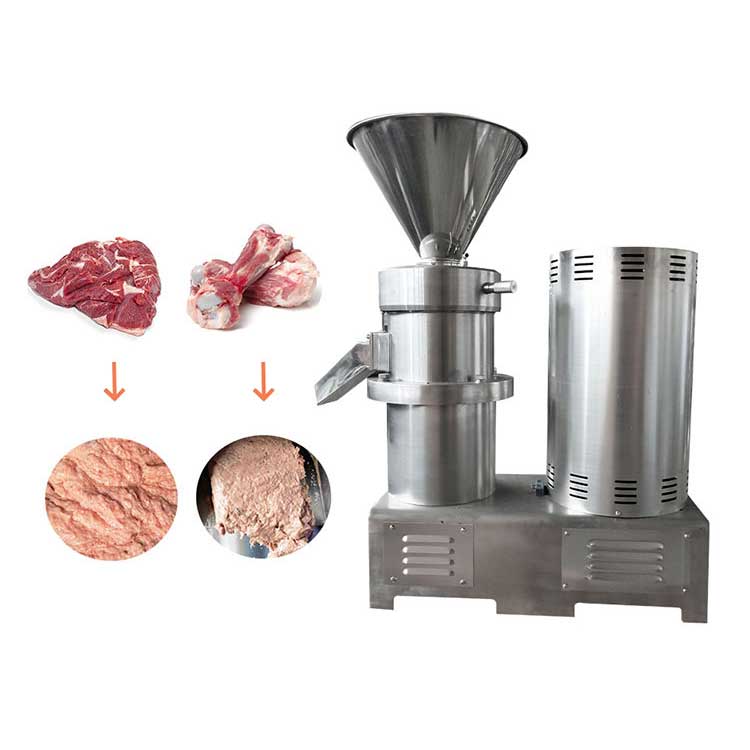

If you are trying to produce bone paste or meat paste, Fuxun’s colloid grinder will be a great option. It transforms raw materials into fine, homogeneous paste, which is widely used in industries such as food processing, pet food manufacturing, and more.
Materials That Can Be Processed
1. Animal Bones: Pig bones, beef bones, chicken bones, fish bones, lamb bones (pre-crushed to ≤10mm recommended).
2. Meat & Seafood: such as beef, pork, chicken, fish meat, shrimp paste, skin (chicken skin, pork skin), bone and meat mixtures.
3. Other Materials: Although designed for bone and meat, the colloid grinder machine can process nut butter, fruit or vegetable puree/sauce, soybean milk, etc.
Who Use Bone and Meat Grinder?
- Pet food production, such as bone-based treats, and nutritional supplements.
- Food products, for example, sausage production, meatballs, ham, soup bases, and more.
- Nutritional food products: Collagen extracts, bone gelatin, and more.
- Feed Industry: Animal feed additives and bone meal processing.
Specifications of Bone Paste Machine
| Model | JMS-50 | JMS-80 | JMS-110 | JMS-130 | JMS-160 | JMS-180 | JMS-210 | JMS-240 | JMS-300 |
|---|---|---|---|---|---|---|---|---|---|
| Fineness (mesh) | 50-100 | 80-150 | 80-150 | 80-200 | 80-200 | 80-200 | 80-200 | 80-200 | 80-200 |
| Capacity (kg/h) | 10-20 | 60-80 | 100-200 | 300-500 | 500-600 | 700-800 | 1000-1200 | 1200-1500 | 3000-4000 |
| Power (kW) | 1.5 (220V) | 4 | 7.5 | 11 | 15 | 18.5 | 30 | 45 | 75 |
| Weight (kg) | 50 | 150 | 175 | 285 | 300 | 375 | 700 | 920 | 1300 |
| Dimensions (mm) | 530*260*580 | 600*410*930 | 700*430*1000 | 990*440*1000 | 1000*460*1050 | 1000*490*1100 | 1260*600*1230 | 1330*630*1280 | 1440*680*1420 |
| Hopper (L) | 3 | 8 | 8 | 14 | 14 | 14 | 24 | 24 | 32 |
| Feed Inlet Diameter (mm) | 40 | 50 | 50 | 90 | 90 | 90 | 120 | 120 | 270 |
Bone & Meat Grinder VS Nut Butter Grinder
Although a bone & meat paste grinder and a nut butter grinder may both be colloid mill machines, they are designed for very different processing needs. Below is a table for your referemce.
| Bone & Meat Grinder | Nut Butter Grinder | |
|---|---|---|
| Main purpose | Process hard, abrasive, and fibrous materials such as meat, connective tissue, and bone-containing raw materials. | Process oil-rich nuts such as peanuts, sesame, almonds, and cashews into a smooth paste. |
| Rotor design | Strong cutting force, impact resistance, and high wear resistance. (shear-type teeth) | Fine grinding, uniform particle size, and smooth flow. (Compound teeth) |
| Wear resistance | Requires more durable, heavy-duty rotor-stator materials because bone and hard particles cause greater abrasion. | Also food-grade, but wear demands are usually lower than bone processing. |
| Typical application | Meat and bone processing, bone slurry, pet food, and related heavy-duty food processing. | Peanut butter, sesame paste, almond butter, cashew paste, and more. |
Can One Machine Do Both?
👉 Technically: Yes (because both are colloid mills)
👉 Practically: Not recommended without proper configuration.
Why?
- Bone and meat processing needs stronger wear resistance and higher cutting power.
- Nut butter production needs finer grinding, smoother output, and better control over heat and texture.
- You can use a colloid grinder with different grinding heads (rotor and stator) for different materials.
- In short, one machine may do both, but the best machine is the one built for your primary application.
Comparison of Bone Crusher, Meat Mincer and Meat & Bone Paste Machine
Fuxun Machinery offers 3 kinds of meat and bone processing equipment.
- Bone Crusher for primary coarse crushing (crush large bones into bone granules);
- Industrial Meat Mincer for mincing meat and bones with medium particle size;
- Meat & Bone Paste Machine for fine grinding to produce meat & bone paste.
- We also offer complete processing line: Bone Crushing / Meat Mincing → Bone Paste Making.
Below is a table showing you the main differences.
| Items | Bone Crusher | Industrial Meat Mincer | Meat & Bone Paste Machine |
|---|---|---|---|
| Function | Coarse crushing: large bones into bone granules | Mincing: meat & bones into small particles | Fine grinding: bone granules into fine bone paste & slurry |
| Fineness | 5–80 mm (adjustable) | 5–30 mm (depends on hole plate) | 50–100 mesh |
| Applicable Materials | Hard bones (with less meat or without meat): fresh or frozen cattle/pig/sheep bones, chicken & duck frame, etc. | Fresh meat, meat with bone, fat, poultry bones, frozen meat blocks, whole fish, whole chicken | Pre-crushed bone granules, mixed meat & bone materials, wet raw materials |
How to Choose Right Meat and Bone Processing Equipment?
Not sure if you need a bone crusher, meat mincer, or paste machine? It all hinges on your raw materials, processing capacity, end product texture, and more.
Factor 1: Raw Materials
- Hard, dry bones (cattle, pig, frozen frames)? Start with a bone crusher.
- Meaty mixes, whole fish/chicken, fats? Choose a meat mincer.
- Pre-crushed granules or bone-meat blends? The paste machine is recommended.
Factor 2: Your Desired End Product
- If you want bone granules → Choose: Bone Crusher
- If you want minced meat (for sausage, meatballs, burgers) → Choose: Industrial Meat Mincer
- If you want fine meat or bone paste (smooth, no particles) → Choose: Meat & Bone Paste Machine (Colloid Grinder)
Factor 3: Capacity and Scale
The actual processing capacity of meat and bone processing equipment is not fixed—it depends heavily on both the raw material size and the required final product size.
For example:
- A meat & bone paste machine (colloid grinder) will achieve higher efficiency when processing pre-crushed bone particles (≤10 mm) compared to processing large chunks directly.
- Similarly, producing a coarse output (e.g., 50-80 mm bone granules) requires less energy and time than producing smaller particles (8-10 mm).
At Fuxun Machinery, we offer a wide range of models to match different production needs. To recommend the most suitable solution, we suggest you provide:
- Your raw material type and size (e.g., whole bones or pre-crushed)
- Your target final product (granules, minced, or paste)
- Your required hourly processing capacity
Based on this information, we can recommend the right model or complete processing line to ensure optimal performance and long-term reliability.
